GEHC Probe Picker

M5Sc-D

XDclear^™ | Single Crystal | Active Matrix | Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal ¹, thoracic/pleural, pediatric, adult cephalic, cardiac², peripheral vascular, urology³, tissue biopsy

Frequency

1–5 MHz

Footprint, FOV

18 x 27 mm, FOV 120°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric
Urology including prostate

M5Sc-RS

XDclear^™ | Single Crystal | Active Matrix | Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal¹, thoracic/pleural, pediatric, adult cephalic, cardiac², transrectal, interventional guidance³

Frequency

1–5 MHz

Footprint, FOV

18 x 27 mm, FOV 120°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric
Interventional guidance including biopsy

6S-D

Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal¹, thoracic/pleural, pediatric, neonatal cephalic, cardiac²

Frequency

2–8 MHz

Footprint, FOV

17 x 24 mm, FOV 115°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric

6S-RS

Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal ¹, thoracic/pleural, pediatric, neonatal cephalic, cardiac², transrectal

Frequency

2–7 MHz

Footprint, FOV

17 x 24 mm, FOV 120°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric

12S-D

Phased Array | Transducer

Main Care Areas

Abdominal¹, pediatric, neonatal cephalic, cardiac²

Frequency

3–12 MHz

Footprint, FOV

13 x 18 mm, FOV 105°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric

12S-RS

Phased Array | Transducer

Main Care Areas

Abdominal ¹, thoracic/pleural, pediatric, neonatal cephalic, cardiac², transrectal

Frequency

4–12 MHz

Footprint, FOV

13 x 18 mm, FOV 90°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric

9L-D

Linear Array | Transducer

Main Care Areas

Abdominal¹, thoracic/pleural, pediatric, small organ², peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, tissue biopsy, vascular access (IV, PICC)

Frequency

2–10 MHz

Footprint, FOV

14 x 53 mm, FOV 45 mm

References

Abdominal including renal, GYN
Small organ including breast, testes, thyroid

11L-D

Linear Array | Transducer

Main Care Areas

Thoracic/pleural, pediatric, small organ¹, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, tissue biopsy, vascular access (IV, PICC)

Frequency

2–10 MHz

Footprint, FOV

13 x 47 mm, FOV 39mm

References

Small organ including breast, testes, thyroid

L8-18i-D

Intraoperative | Linear Array | Transducer

Main Care Areas

Pediatric, small organ¹, neonatal cephalic, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, intraoperative (vascular), tissue biopsy

Frequency

5–18 MHz

Footprint, FOV

11 x 35 mm, FOV 25mm

References

Small organ including breast, testes, thyroid

ML6-15-D

Active Matrix | Wide Band | Linear Array | Transducer

Main Care Areas

Small organ¹, peripheral vascular, musculoskeletal conventional, tissue biopsy, vascular access (IV, PICC)

Frequency

4–15 MHz

Footprint, FOV

16 x 61 mm, FOV 50 mm

References

Small organ including breast, testes, thyroid

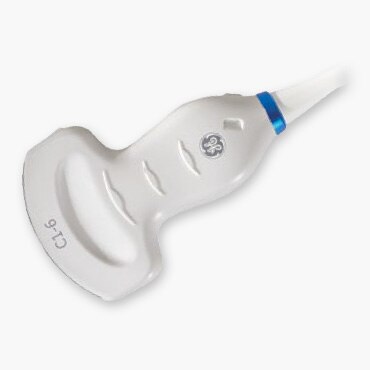

C1-6-D

XDclear | Single Crystal | Curved Array | Transducer

Main Care Areas

Fetal/O=obstetrics, abdominal¹, thoracic/pleural, pediatric, peripheral vascular, urology², tissue biopsy

Frequency

1–6 MHz

Footprint, FOV

16 x 70 mm, FOV 70°

References

Abdominal including renal, GYN
Urology including prostate

C2-9-D

XDclear | Single Crystal | Curved Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal¹, pediatric, peripheral vascular, urology², tissue biopsy, vascular access (IV, PICC)

Frequency

2–9 MHz

Footprint, FOV

14 x 51 mm, FOV 65°

References

Abdominal including renal, GYN
Urology including prostate

8C*

Curved Array | Transducer

Main Care Areas

Abdominal¹, pediatric, peripheral vascular, musculoskeletal conventional

Frequency

4–8 MH

Footprint, FOV

12 x 22 mm, FOV 128°

References

Abdominal including renal, GYN
*8C probe is supported but are not available for sale.

iC5-9-D

Tightly | Convex Array | Transducer

Main Care Areas

Fetal/obstetrics, urology¹, transvaginal, transrectal, tissue biopsy, vascular access (IV, PICC)

Frequency

3–9 MHz

Footprint, FOV

17 x 21 mm, FOV 128°

References

Urology including prostate

C3-10-D

XDclear Single | Crystal Tightly | Curved Array | Transducer

Main Care Areas

Abdominal¹, pediatric, neonatal cephalic, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, tissue biopsy, vascular access (IV, PICC)

Frequency

3–10 MHz

Footprint, FOV

12 x 22 mm, FOV 95°

References

Abdominal including renal, GYN

P2D

Pencil | Transducer

Main Care Areas

Cardiac¹, peripheral vascular

Frequency

2 MHz

References

Cardiac including adult and pediatric

P6D

Pencil | Transducer

Main Care Areas

Cardiac¹, peripheral vascular

Frequency

7 MHz

References

Cardiac including adult and pediatric

4V-D*

Active Matrix | 4D Volume | Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal¹, pediatric, adult cephalic, cardiac², urology³

Frequency

1–4 MHz

Footprint, FOV

24 x 21 mm, FOV 90°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric
Urology including prostate
*4V-D probe is supported but are not available for sale.

4Vc-D

XDclear | Single Crystal | Active Matrix | 4D Volume | Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal¹, thoracic/pleural, pediatric, adult cephalic, cardiac², urology³, tissue biopsy

Frequency

1–6 MHz

Footprint, FOV

18 x 29 mm, FOV 90°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric
Urology including prostate

6Vc-D

Active Matrix | 4D Volume | Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal¹, thoracic/pleural, pediatric, neonatal cephalic, cardiac²

Frequency

2–8 MHz

Footprint, FOV

16 x 20 mm, FOV 115°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric

6VT-D

TEE | Active Matrix | 4D Volume | Phased Array | Transducer

Main Care Areas

Cardiac¹, transesophageal

Frequency

3–8 MHz

Footprint, FOV

Tip(LxWxH) 45 x 14 x 13 mm, FOV 90°

References

Cardiac including adult and pediatric

6Tc/6Tc-RS*

TEE | Phased Array | Transducer

Main Care Areas

Cardiac¹, transesophageal

Frequency

3–8 MHz

Footprint, FOV

Tip(LxWxH) 45 x 14 x 12 mm, FOV 90°

References

Cardiac including adult and pediatric
*6Tc-RS is only supported via a legacy probe adapter and is no longer avaiable for sale.

9T/9T-RS*

TEE | Phased Array | Transducer

Main Care Areas

Cardiac¹, transesophageal

Frequency

3–10 MHz

Footprint, FOV

Tip(LxWxH) 35 x 11 x 8 mm, FOV 90°

References

Cardiac including adult and pediatric
*9T-RS is only supported via a legacy probe adapter and is no longer avaiable for sale.

9VT-D

TEE | Active Matrix | 4D Volume | Phased Array | Transducer

Main Care Areas

Cardiac¹, transesophageal

Frequency

3–8 MHz

Footprint, FOV

Tip(LxWxH) 35 x 11 x 9 mm, FOV 90°

References

Cardiac including adult and pediatric

10T-D

TEE | Phased Array | Transducer

Main Care Areas

Cardiac¹, transesophageal

Frequency

3–10 MHz

Footprint, FOV

Tip(LxWxH) 16x8x6 mm, FOV 90°

References

Cardiac including adult and pediatric

NUVISIONTM Connector Cable

Connector Cable

NUVISIONTM Ultrasound Catheter

Intra Cardiac | Active Matrix | Phased Array | 4D Volume | Catheter

Main Care Areas

Intra-cardiac and intra-luminal

Frequency

4–10 MHz

Footprint, FOV

10F, FOV 90°

3Sc-RS

Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal ¹, thoracic/pleural, pediatric, adult cephalic, cardiac², peripheral vascular, interventional guidance³

Frequency

1–5 MHz

Footprint, FOV

18 x 24 mm, FOV 120°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric
Interventional guidance including biopsy

C1-5-D

Phased Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal ¹, thoracic/pleural, peripheral vascular urology², interventional guidance³

Frequency

1–6 MHz

Footprint, FOV

17 x 69 mm, FOV 70°

References

Abdominal including renal, GYN
Urology including prostate
Interventional guidance including biopsy

ICE Cord-RS

Connector Cable

AcuNav^TM 8F

Intra Cardiac | Phased Array | Catheter

Main Care Areas

Intra-cardiac and intra-luminal

Distributed by Biosence Webster, Inc. Not available in all countries.
Please contact Biosense Webster, Inc. for availability.

AcuNav^TM 10F

Intra Cardiac | Phased Array | Catheter

Main Care Areas

Intra-cardiac and intra-luminal

Distributed by Biosence Webster, Inc. Not available in all countries.
Please contact Biosense Webster, Inc. for availability.

Sound Star 3D 10F/10F/8F

Intra Cardiac | Phased Array | Catheter

Main Care Areas

Intra-cardiac and intra-luminal

Distributed by Biosence Webster, Inc. Not available in all countries.
Please contact Biosense Webster, Inc. for availability.

ML6-15-RS

Active Matrix | Wide Band | Linear Array | Transducer

Main Care Areas

Abdominal ¹, thoracic/pleural, pediatric, small organ², neonatal cephalic, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, interventional guidance³

Frequency

5–15 MHz

Footprint, FOV

61 x 16 mm, FOV 50 mm

References

Abdominal including renal, GYN
Small organ including breast, testes, thyroid
Interventional guidance including biopsy

L6-12-RS

Linear Array | Transducer

Main Care Areas

Abdominal ¹, thoracic/pleural, pediatric, small organ², neonatal cephalic, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, interventional guidance³

Frequency

4–13 MHz

Footprint, FOV

11 x 47 mm, FOV 38 mm

References

Abdominal including renal, GYN
Small Organ including breast, testes, thyroid
Interventional guidance including biopsy

9L-RS

Linear Array | Transducer

Main Care Areas

Abdominal ¹, thoracic/pleural, pediatric, small organ², neonatal cephalic, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, interventional guidance³

Frequency

2–10 MHz

Footprint, FOV

14 x 53 mm, FOV 44 mm

References

Abdominal including renal, GYN
Small organ including breast, testes, thyroid
Interventional guidance including biopsy

12L-RS

Linear Array | Transducer

Main Care Areas

Abdominal ¹, thoracic/pleural, pediatric, small organ², neonatal cephalic, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, interventional guidance³

Frequency

4–13 MHz

Footprint, FOV

13 x 47 mm, FOV 38 mm

References

Abdominal including renal, GYN
Small organ including breast, testes, thyroid
Interventional guidance including biopsy

L4-20t-RS

XDclear | Wide Band | Linear Array | Transducer

Main Care Areas

Abdominal ¹, thoracic/pleural, pediatric, small organ², neonatal cephalic, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, interventional guidance³

Frequency

4–20 MHz

Footprint, FOV

12 x 49 mm, FOV 38°

References

Abdominal including renal, GYN
Small organ including breast, testes, thyroid
Interventional guidance including biopsy

4C-RS

Curved Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal ¹, thoracic/pleural, pediatric, musculoskeletal conventional, musculoskeletal superficial, urology², interventional guidance³

Frequency

1–5 MHz

Footprint, FOV

18 x 66 mm, FOV 58°

References

Abdominal including renal, GYN
Urology including prostate
Interventional guidance including biopsy

C1-5-RS

Curved Array | Transducer

Main Care Areas

Fetal/obstetrics, abdominal ¹, thoracic/pleural, pediatric, musculoskeletal conventional, musculoskeletal superficial, urology², interventional guidance³

Frequency

1–5 MHz

Footprint, FOV

17 x 69 mm, FOV 70°

References

Abdominal including renal, GYN
Urology including prostate
Interventional guidance including biopsy

8C-RS

Curved Array | Transducer

Main Care Areas

Abdominal ¹, thoracic/pleural, pediatric, small organ², neonatal cephalic, cardiac³, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, transrectal

Frequency

3–10 MHz

Footprint, FOV

12 x 22 mm, FOV 131°

References

Abdominal including renal, GYN
Small organ including breast, testes, thyroid
Cardiac including adult and pediatric

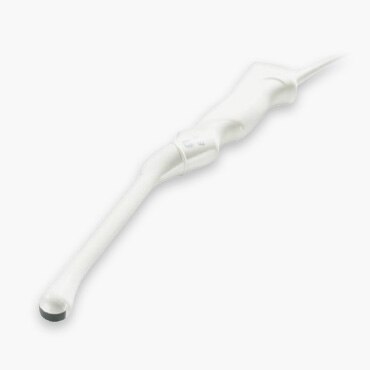

E8C-RS

Endo Micro | Convex | Transducer

Main Care Areas

Fetal/obstetrics, abdominal ¹, thoracic/pleural, pediatric, adult cephalic, cardiac², transrectal, interventional guidance³

Frequency

3–10 MHz

Footprint, FOV

17 x 21 mm, FOV 128°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric
Interventional Guidance including biopsy

E8Cs-RS

Endo Micro | Convex | Transducer

Main Care Areas

Fetal/obstetrics, abdominal ¹, thoracic/pleural, pediatric, adult cephalic, cardiac², transrectal, interventional guidance³

Frequency

3–10 MHz

Footprint, FOV

19 x 24 mm, FOV 128°

References

Abdominal including renal, GYN
Cardiac including adult and pediatric
Interventional Guidance including biopsy

L8-18i-RS

Intraoperative | Linear Array | Transducer

Main Care Areas

Thoracic/pleural, small organ¹, peripheral vascular, musculoskeletal conventional, musculoskeletal superficial, intraoperative (vascular)

Frequency

4–18 MHz

Footprint, FOV

11 x 35 mm, FOV 25 mm

References

Small organ including breast, testes, thyroid

Sorry, no probes match those filters.

1 2 3

FILTERS

Care area

Application

M5Sc-D

M5Sc-RS

6S-D

6S-RS

12S-D

12S-RS

9L-D

11L-D

L8-18i-D

ML6-15-D

C1-6-D

C2-9-D

8C*

iC5-9-D

C3-10-D

P2D

P6D

4V-D*

4Vc-D

6Vc-D

6VT-D

6Tc/6Tc-RS*
