GEHC Probe Picker

L4-20t-RS

High-frequency, programmable button probe for superficial to deep structures

Learn more

L4-20t-RS

Linear array | Button probe | Ultra-wide band | XDclear

Main care areas

ANS, MSK, Vascular Access, Rheumatology, Dermatology, PEDs, NICU, ED, CC

Frequency

3.0 – 20 MHz

Footprint, FOV

11.56 x 48.43mm, FOV 38.4mm

Applications

MSK, Nerve Block, Peripheral Vascular, Vascular Access, Rheumatology, Dermatology, Small Parts, Lung, Pediatrics, Neonatal, Abdomen

Details

Ultra-wide bandwidth, high-frequency Probe with XDclear^TM technology
High-frequency (up to 20 MHz) designed for superb imaging of superficial structures
Ultra-wide bandwidth provides high resolution superficial imaging (up to 20 MHz) as well as excellent penetration for deeper structures (down to 3 MHz)
Four configurable buttons
Designed for easy cleanability
Long cable enables scanning across the bed
Center line marks for needle procedures (both in/out of plane)
Lightweight, ergonomic design

Brachial plexus

ML6-15-RS

Matrix Array technology for clear, uniform images superficial to mid field

Learn more

ML6-15-RS

Linear array | Wide band | Active matrix array

Main care areas

ANS, MSK, Rheumatology, Breast Surgery

Frequency

4.0 – 18.9 MHz

Footprint, FOV

16.0 x 60.7 mm, FOV 50.4mm

Applications

Small Parts (Breast/Thyroid), MSK, Nerve Block, Dermatology, Rheumatology, Peripheral Vascular, Vascular Access, Lung

Details

Active matrix array technology generates a thin beam providing excellent contrast resolution
Wide bandwidth provides excellent imaging from superficial to mid-field
Ergonomic design with ridges to improve grip
Generates wide field-of-view for depicting anatomical relationships

Popliteal vein

three different visuals of the linear array, active matrix array, and conventional array of the ML6-15-RS transducer

L10-22-RS

Small footprint, ultra-high frequency for the most superficial anatomy

Learn more

L10-22-RS

Linear array | Super high-frequency probe | Wide band

Main care areas

NICU, PEDs, MSK, Rheumatology, Dermatology

Frequency

7.0 – 22.2 MHz

Footprint, FOV

8.0 x 20.3 mm; FOV 16.2 mm

Applications

Dermatology, MSK, Pediatrics, Neonatal, Rheumatology, Vascular access, Peripheral Vascular

Details

Very high-frequency (up to 22.2 MHz) for the most superficial anatomy
Small footprint linear probe designed to fit in tiny spaces
Center line markers for needle procedures (both in/out of plane)
Lightweight, ergonomic design with ridges to improve grip

Nail bed

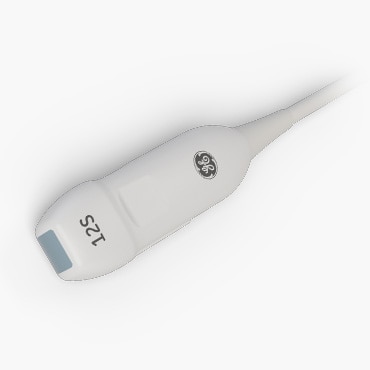

12S-RS

Very high-frequency sector probe for neonatal and infant cardiac imaging

Learn more

12S-RS

Phased array | Wide band

Main care areas

PEDs, ED, NICU, ANS (Periop)

Frequency

2.7 – 12.5 MHz

Footprint, FOV

13.2 x 17.6 mm, FOV 105º

Applications

Pediatrics/Neonatal Cardiac, Neonatal Cephalic

Details

Very high-frequency phased array probe (sector) designed for neonatal and infant cardiac imaging
Also supports high quality neonatal cephalic and abdominal imaging
Ergonomic design for an optimal grip

Cardiac, ASD

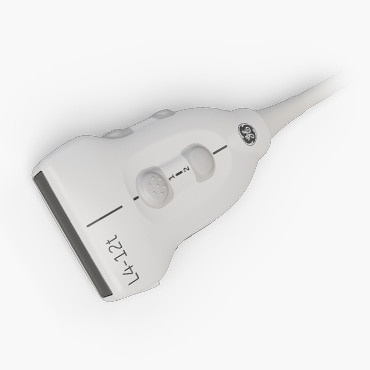

L4-12t-RS

Programmable, high-frequency button probe scans superficial to deep structures

Learn more

L4-12t-RS

Linear array | Button probe | Wide band

Main care areas

ANS, MSK, Vascular Access, Rheumatology, Dermatology, PEDs, NICU, ED, CC

Frequency

3.4 – 12.6 MHz

Footprint, FOV

12.7 x 47.1 mm; FOV 38.4 mm

Applications

MSK, Nerve Block, Peripheral Vascular, Vascular Access, Small Parts, Lung, Rheumatology, Dermatology

Details

High-frequency linear probe designed for high quality imaging of superficial to deep structures
Same frequency range and dimensions as 12L
Four configurable buttons
Center line markers for needle procedures (both in/out of plane)
Lightweight, ergonomic design with ridges to improve grip

Brachial plexus

C1-5-RS

Convex array designed for general purpose imaging of mid to deep structures

Learn more

C1-5-RS

Convex array | Wide band

Main care areas

ED, CC, PEDs, ED, ANS (Periop)

Frequency

1.4 – 5.7 MHz

Footprint, FOV

17.2 x 69.3 mm, FOV 59º

Applications

Abdomen, OB/GYN, Lung, Urology

Details

Curved (Convex) array probe designed for general purpose imaging of mid to deep structures
Primarily for adults and older children
Lightweight, ergonomic design with ridges to improve grip

eFAST

C2-9-RS

Curved probe with XDclear™ technology delivers impressive deep penetration and high resolution

Learn more

C2-9-RS

Curved | XDclear | Ultra-wide band

Main care areas

ED, CC, MSK, ANES (Periop), Vascular Access, NICU/PICU

Frequency

2.1 – 11.9 MHz

Footprint, FOV

14 x 51 mm FOV 63°

Applications

Musculoskeletal Conventional, Nerve Block, Pediatric/Neonatal, Vascular/Peripheral Vascular

Details

Curved probe with XDclear™ technology delivers powerful high fidelity and wide bandwidth for impressive deep penetration and high resolution
Allows for deeper scanning and enables a better fit for some windows while scanning
With a higher frequency, the imaging from this ergonomic probe delivers an enhanced image resolution
Excellent for use with smaller adults and larger children

8C-RS

Micro convex with high-frequency, wide field of view and small footprint

Learn more

8C-RS

Micro convex probe | Wide band

Main care areas

NICU, PEDs, ANS (Periop), MSK

Frequency

3.1 – 12.9 MHz

Footprint, FOV

12 x 22 mm, FOV 128º

Applications

Pediatrics (Cardiac, Abdomen), Neonatal Cephalic, Adult Cephalic

Details

Micro convex design provides a wide field of view
High-frequency imaging
Small footprint for NICU and Pediatrics
Lightweight, ergonomic design with ridges to improve grip

12L-RS

Linear probe for small parts, vascular, nerve, pediatric and MSK imaging

Learn more

12L-RS

Linear array | Wide band

Main care areas

ANS, MSK, Vascular Access, Rheumatology, Dermatology, PEDs, NICU, ED, CC

Frequency

3.4 – 12.6 MHz

Footprint, FOV

12.7 x 47.1 mm; FOV 38.4 mm

Applications

MSK, Nerve Block, Peripheral Vascular, Vascular Access, Small Parts, Lung, Rheumatology, Dermatology

Details

High-frequency linear probe designed for high quality imaging of superficial to deep structures
Same frequency range and dimensions as L4-12t without buttons
Center line markers for needle procedures (both in/out of plane)
Lightweight, ergonomic design with ridges to improve grip

ultrasound image of a nerve block of the axillary nerve using the 12L-RS ultrasound transducer

Nerve block, Axillary nerve

9L-RS

Linear for superficial imaging, designed for deeper nerves, muscles, vessels

Learn more

9L-RS

Linear array | Wide band

Main care areas

ANS, MSK, Vascular Access, ED, CC

Frequency

2.4 – 10.5 MHz

Footprint, FOV

14.1 x 53.0 mm, FOV 44.2mm

Applications

MSK, Nerve Block, Peripheral Vascular, Vascular Access, Small Parts, Lung, Rheumatology

Details

Linear probe designed to penetrate deep nerves, muscles, and vasculature
Good imaging for superficial structures
Lightweight, ergonomic design with ridges to improve grip

Popliteal vein

L8-18i-RS

High frequency, hockey stick design for superficial structures in tight spaces

Learn more

L8-18i-RS

Linear array | Hockey stick shape probe | Wide band

Main care areas

NICU, MSK, ANS, PEDs, Dermatology, Rheumatology, Vascular Access

Frequency

2.5 – 16.8 MHz

Footprint, FOV

11.1 x 34.8 mm; FOV 25.2 mm

Applications

MSK, Rheumatology, Dermatology, Vascular Access, Peripheral Vascular, Pediatrics, Neonatal, Small Parts, Nerve block

Details

Hockey stick design with small footprint designed to fit in tight spaces
High-frequency images for superficial and small structures
Center line markers for out of plane needle procedures

ultrasound image showing Vascular Access of the Cephalic vein using the L8-18i-RS ultrasound transducer

Vascular Access, Cephalic vein

3Sc-Rs

Sector probe for high quality cardiac, abdomen, lung and transcranial imaging

Learn more

3Sc-Rs

Phased array | Wide band

Main care areas

ED, CC, ANS (Periop)

Frequency

1.1 – 4.7 MHz

Footprint, FOV

18.4 x 23.7 mm, FOV 120º

Applications

Cardiac, Abdomen, Lung, Pediatrics, Adult Cephalic, TCD

Details

Phased Array probe (sector) designed for high quality cardiac imaging
Also supports high quality abdominal, lung and transcranial imaging
Ergonomic design for an optimal grip

Real-time EF

6S-RS

High-frequency sector for pediatric cardiac, abdomen, lung and transcranial imaging

Learn more

6S-RS

Phased array | Wide band

Main care areas

ED, PEDs, ED, PICU, ANS (Periop)

Frequency

1.8 – 8.6 MHz

Footprint, FOV

16.8 x 23.5 mm, FOV 115º

Applications

Pediatrics (Cardiac), Neonatal (Cephalic)

Details

High-frequency phased array probe (sector) designed for pediatric cardiac imaging
Also supports high quality pediatric abdominal, lung and transcranial imaging
Ergonomic design for an optimal grip

E8C-RS

High-frequency Intracavitary probe designed for imaging in OB/GYN and Urology

Learn more

E8C-RS

Endocavitary probe | Wide band

Main care areas

OB/GYN, Urology, ED

Frequency

2.2 – 12.5 MHz

Footprint, FOV

16.9 x 21.2 mm, FOV 128º

Applications

OB/GYN, Urology

Details

High-frequency probe designed for intracavitary imaging in gynecology, obstetrics and urology

Ovary

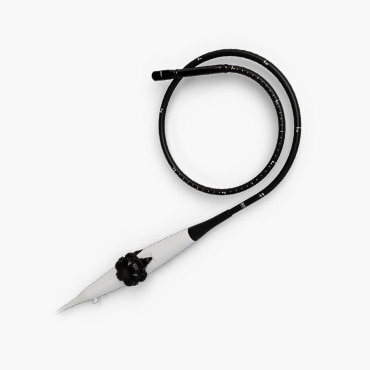

6Tc-RS

Transesophageal probe designed for high-resolution cardiac images

Learn more

6Tc-RS

Transesophageal (tee) probe | Wide band

Main care areas

ED, CC

Frequency

1.2 – 5.3 MHz

Footprint, FOV

18.07 mm x 27.51 mm, FOV 120º

Applications

Cardiac (Adult)

Details

Transesophageal probe designed for high-resolution cardiac images

ultrasound image of a transesophageal echocardiogram (TEE) using the 6Tc-RS ultrasound transducer

TEE

M5Sc-RS

Broad-spectrum sector probe for cardiac, pediatric abdomen, pediatric cardiac and transcranial imaging

Learn more

M5Sc-RS

Sector probe | Broad-spectrum

Main care areas

CC, ED, Periop

Frequency

1.3 – 5.1 MHz

Footprint, FOV

18.07 x 27.5 mm FOV 120º

Applications

Abdominal, Adult Cardiac, Adult Cephalic, Fetal/Obstetrics, Gynecology, Ophthalmic, Pediatric Cardiac, Pediatric/Neonatal, Peripheral Vascular, Thoracic/Pleural, Urology

Details

Broad-spectrum sector probe for cardiac, pediatric abdomen, fetal heart and transcranial imaging
Supports both Active Matrix Array and XDclear Technology

Vscan Air™ CL

Flexible, wireless dual-probe handheld ultrasound with curved and linear transducers that deliver crystal clear images

Learn more

Vscan Air™ CL

Dual probe | Curved and linear | Wireless

Main care areas

ED, CC, MSK, Anes, Periop, Vascular Access, NICU/PICU

Frequency

Curved: 2.0 – 5.0 MHz Linear: 3.0 – 12.0 MHz

Footprint, FOV

Curved: 16 x 64 mm FOV 60° Linear: 7 x 40 mm

Applications

Vscan Air™ Linear
Musculoskeletal Conventional, Musculoskeletal Superficial, Pediatric/ Neonatal, Neonatal Cephalic, Ophthalmic, Small Parts, Thoracic/Pleural, Nerve Block, Vascular/Peripheral Vascular, Vascular Access

Vscan Air Curved
Abdominal, Adult Cardiac, Gynecology, Fetal/Obstetrics, Musculoskeletal Conventional, Pediatric Cardiac (40 kg and above), Pediatric/Neonatal, Thoracic/Pleural, Urology, Vascular/Peripheral Vascular

Details

Vscan Air CL offers wireless freedom and maximum portability. One device delivers the value of two: the curved array transducer is ideal for abdominal imaging, obstetric assessments and more, and the linear array is ideal for vascular, MSK, lungs and more. Complete both shallow and deep scans with one device without compromising image quality.

Vscan Air™ SL

Flexible, wireless dual-probe handheld ultrasound with sector and linear transducers that deliver crystal clear images

Learn more

Vscan Air™ SL

Dual probe | Sector and linear | Wireless

Main care areas

ED, CC, MSK, Anes, Periop, Vascular Access, NICU/PICU

Frequency

Sector: 1.6 – 3.7 MHz Linear: 3.0 – 12.0 MHz

Footprint, FOV

Sector: 17 x 22 mm FOV 90° Linear: 7 x 40 mm

Applications

Vscan Air™ Linear
Musculoskeletal Conventional, Musculoskeletal Superficial, Pediatric/ Neonatal, Neonatal Cephalic, Ophthalmic, Small Parts, Thoracic/Pleural, Nerve Block, Vascular/Peripheral Vascular, Vascular Access

Vscan Air Sector
Abdominal, Adult Cardiac, Adult Cephalic, Gynecology, Fetal/Obstetrics, Pediatric Cardiac (40 kg and above), Pediatric/Neonatal, Thoracic/Pleural, Urology

Details

Vscan Air SL handheld ultrasound offers wireless freedom and maximum portability with two transducers in a single device. Delivers crystal-clear images at the point of care. Sector-phased array transducer is ideal for rapid cardiac assessments. The linear array transducer allows you to move from a cardiac to a vascular assessment without missing a beat.
