Benefits

  • Technology

    Our Stand-alone infant resuscitation system offers the following features:

    • Full integration of critical resuscitation features makes set-up easy and keeps the care area organized. And, it simplifies standardization of resuscitation protocols across the perinatal care area.
    • The streamlined design puts all the therapy right at your fingertips, giving you convenient and unobstructed access to suction, blended gases, and monitored positive pressure capability.
    • Flexible mounting options, from roll stand to GCX arms, let you use it alongside any warmer, incubator, or hybrid bed in your facility. It's designed to easily mount on the Giraffe* Shuttle,1 giving you quick access to essential resuscitation equipment when moving the baby within the hospital.
    • Innovative T-piece circuit promotes ergonomically comfortable hand-positioning and single-handed control of breathing.
    • Built-in pressure-priority valve insures the system - when connected to both wall and tank gas sources - first draws from the wall, conserving tank gases for transportation.

    1. An intra-hospital transportable power source that is an accessory to Giraffe* and Panda* beds.

Specifications

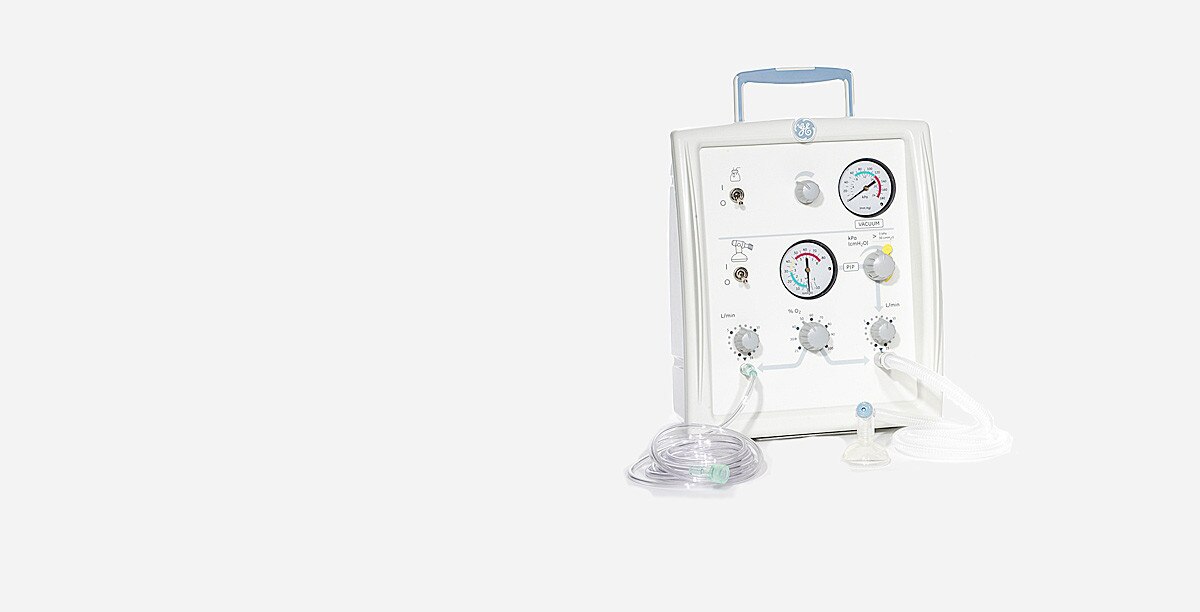

Our Giraffe* Stand-alone Infant Resuscitation System specifications include:

  • Depth: <8.7 in (22 cm) knobs to fittings
  • Height: <14.6 in (37 cm)
  • Width: <11.8 in (30 cm)
  • Weight: Approx. 15 lbs (7 Kg)
  • Input Source: Hospital pipeline or cylinder with regulator
  • Input Gas Pressure: 40-75 psi (275-600 kPa)
  • Vacuum Range: 0-150 mm Hg
  • Flow Range: 0-15 lpm
  • Air/O2 Blender Range: 21-100% O2
  • Suction Regulator Range: 0-150 mm Hg
  • Maximum PIP (for T-piece Systems only): 45 +/- 5cm H2O
  • PIP Override (for T-piece Systems only): >30 +/- 4 cm H2O

Tour

hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_active_jpg

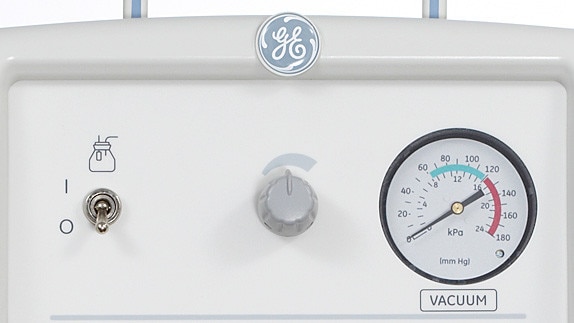

  • Integrated Suction

    A venturi vacuum supplies continuous suction range from 0 to 150 mm Hg (0-20 kPa) as per local resuscitation protocol for clearing of the oral, tracheal and nasal passages. Suction control knob lets you adjust desired negative pressure.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_1_jpg

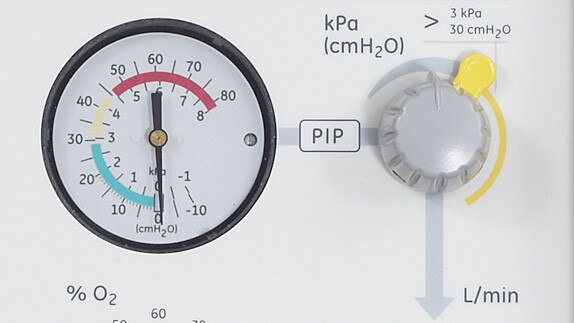

  • Integrated Pressure Manometer

    Conveniently located for viewing. Displays both the PIP (Peak Inspiratory Pressure) and PEEP (Positive End Expiratory Pressure).
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_2_jpg

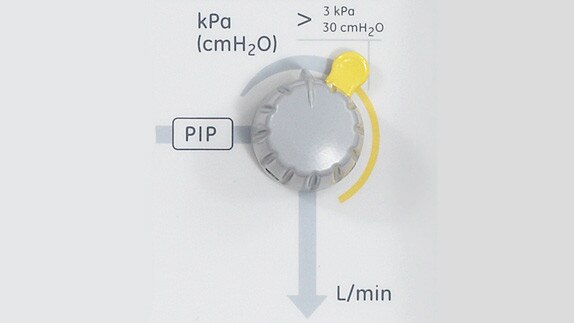

  • PIP Control

    The Peak Inspiratory Pressure (PIP) control knob and a flow meter regulate medical gas supplied to a dedicated T-piece outlet.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_3_jpg

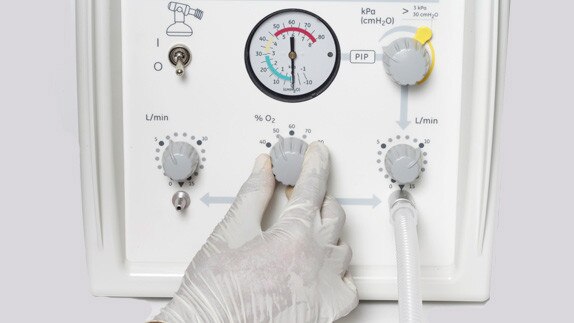

  • Integrated Blender

    Eliminates the need for an external system and additional tubing. Regulate FiO2 from 21 to 100% oxygen with the control knob located on the front panel.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_4_jpg

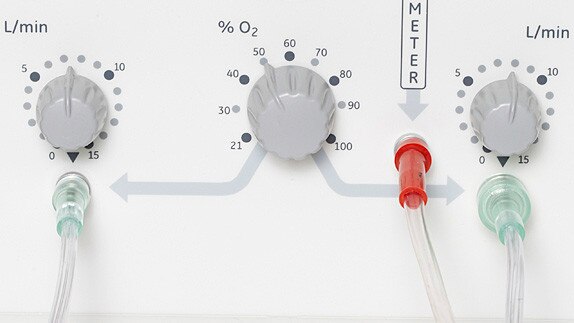

  • Flow Meter & Control

    Primary flow meter and control knob let you set desired flow rate. A secondary flow meter outlet and control knob for free flowing oxygen blow-by.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_5_jpg

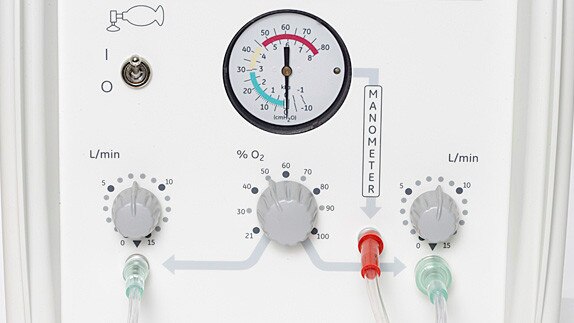

  • Blended Gas Outlet Ports

    Primary gas outlet port to connect GE’s T-piece circuit. Auxiliary gas outlet port to connect Oxygen tubing for blended free flow Oxygen.
    hotspot tours-mic-giraffe star-gehc-giraffe-star_spotlight_1_hotspot_6_jpg
